Holzstar - oscillating spindle and belt sander OBSS 100
ID: 81812
- Infinitely adjustable tilting work table from 0° to 45°
- Fixed angle steps at 0°, 15°, 22.5°, 30° and 45°
- Safe and clean working thanks to integrated suction nozzle (38 mm) for connecting an external suction unit
- Practical storage option for accessories and installation tools
- Power 0.45 kW at motor speed 11500 min
- Protection class II
- Sanding sleeves diameter 13, 19, 26, 38, 51 mm - length 115 mm
- Sanding belt LxW 610 x 100 mm
- Sanding surface LxW 220 x 100 mm
- Sanding height max. 98 mm
- Belt speed 8 m/s
- Oscillation 58min¯¹ - stroke 16 mm
- Work table 430 x 410 mm
- Length/width/height 530 x 480 x 480 mm
- Weight 12 kg

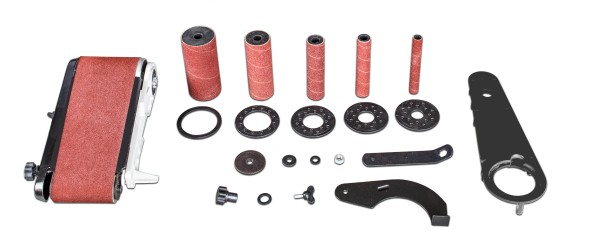

- Scope of delivery:
- 5 sanding sleeves K80, Ø 13 / 19 / 26 / 38 / 51 mm
- 4 rubberised sanding rollers, length 115 mm, Ø 19 / 26 / 38 / 51 mm
- 5 table inserts Ø 13 / 19 / 26 / 38 / 51 mm
- 3 spindle discs Ø 15 / 21 / 45 mm
- Sanding belt attachment
- Cover for sanding belt attachment
- Workpiece stop
- Assembly tool
- Sanding belt
